Quality Batteries WA

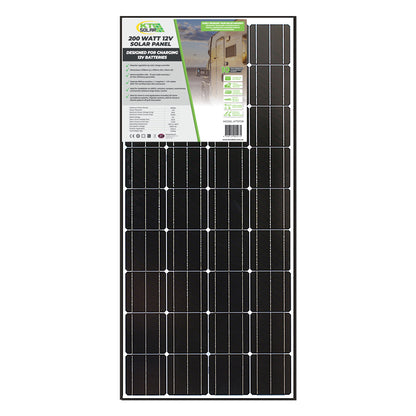

200W MONOCRYSTALLINE SINGLE CELL SOLAR PANEL KT70729 KT SOLAR

Regular price $280.00 AUD
Regular price Sale price $280.00 AUD
Sale Sold out

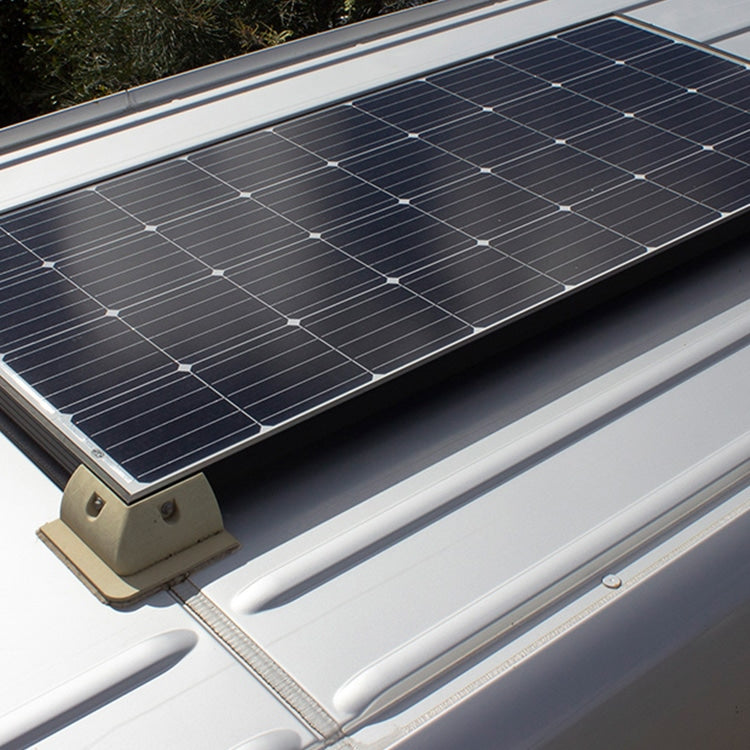

200W 12V solar panel is built predominantly for permanent installations on the roofs of 4WD, vans, caravans, campers, motorhomes, RV’s, commercial service vehicles, large boats & yachts, powering 12V sealed lead-acid batteries that power devices such as 12V fridges, air-compressors, lighting and other 12V devices.

This solar panel is also ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates & off-grid shed power.

Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70757 – 20 Amp PWM Solar Charge Controller.

Features 900mm PV cables terminated to male & female TUV certified solar connectors.

Dimensions & Weight:

  • Dimensions (Height): 1476mm
  • Dimensions (Length): 670mm
  • Dimensions (Depth): 40mm
  • Panel Weight: 11.50Kg

Features:

  • Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
  • Ideal for home and rural applications including off-grid shed power
  • Requires regulation by solar charge controller
  • Direct connection to batteries with 900mm PV cables with positive (+) and negative (-) TUV certified connectors

Warranty & Guarantees:

  • 10 Year Warranty on Manufacture & Build
  • 25 Year Efficiency Guarantee
  • National Warranty Programme

Specifications:

Power Tolerance +3%
Maximum Power (Pmax) 200Wp
Maximum Power Voltage (Vmp) 19.6V
Maximum Power Current (Imp) 10.20A
Rated Voltage 12V
Open Circuit Voltage (Voc) 23.2V
Short Circuit Current (Isc) 11.27A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
