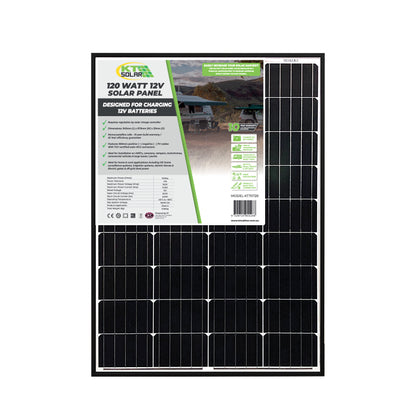

120W MONOCRYSTALLINE SINGLE CELL SOLAR PANEL KT70728 KT SOLAR

$185.00 AUD
$185.00 AUD
Sale Sold out

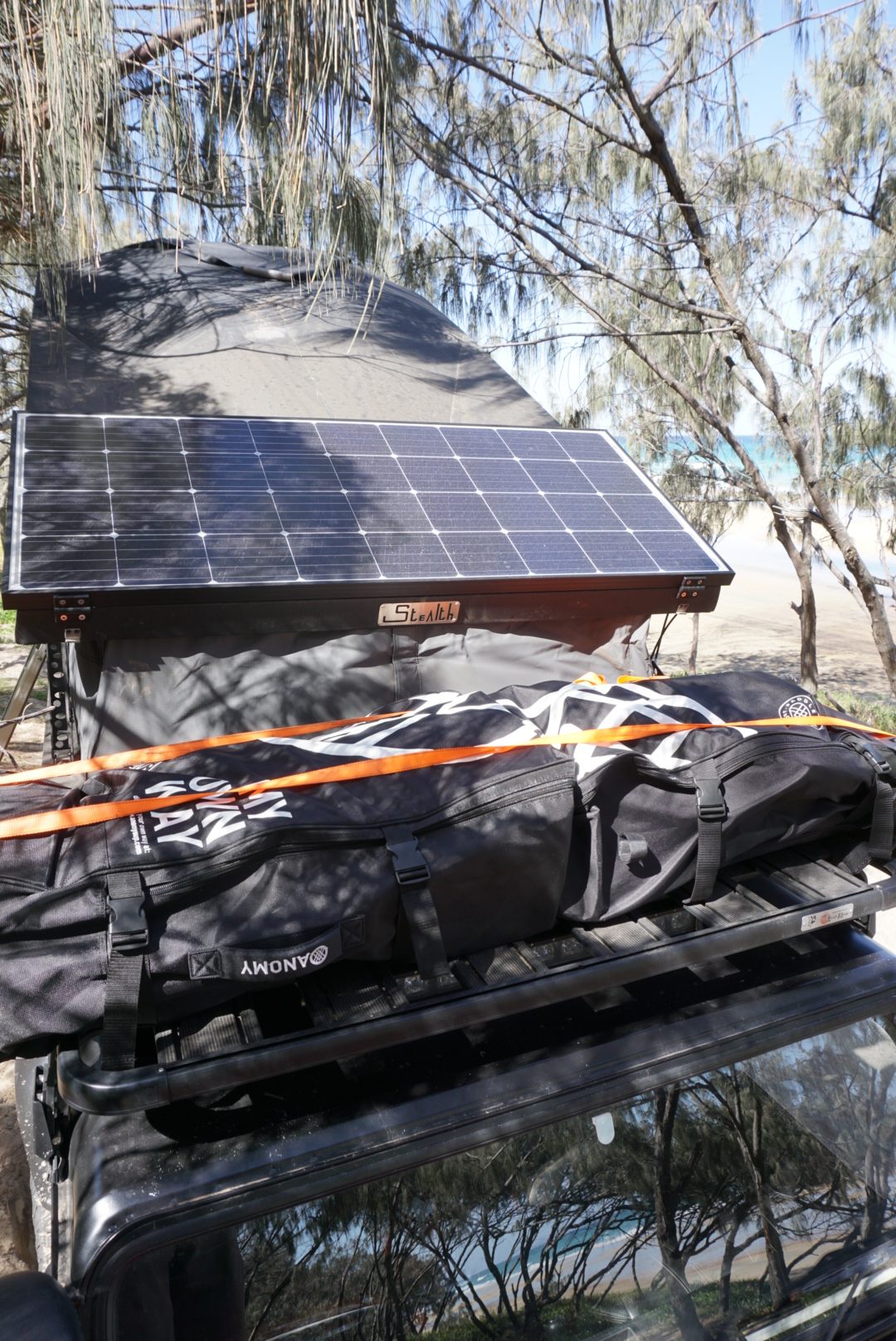

Designed for installation on 4WD, caravans, campers, motorhomes, RV’s, large boats & yachts.

Ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates & off-grid shed power.

Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70756 – 10 Amp PWM Solar Charge Controller.

Features 900mm PV cables terminated to male & female TUV certified solar connectors.

Dimensions & Weight:

  • Dimensions (Height): 945mm
  • Dimensions (Length): 670mm
  • Dimensions (Depth): 35mm
  • Panel Weight: 6.90Kg

Features:

  • Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
  • Ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences/gates & off-grid shed power
  • Requires regulation by solar charge controller
  • Direct connection to batteries with 90mm PV cables with positive (+) and negative (-) TUV certified connectors

Warranty & Guarantees:

  • 10 Year Warranty on Manufacture & Build
  • 25 Year Efficiency Guarantee
  • National Warranty Programme

Specifications:

Power Tolerance +3%
Maximum Power (Pmax) 120Wp
Maximum Power Voltage (Vmp) 19.0V
Maximum Power Current (Imp) 6.32A
Rated Voltage 12V
Open Circuit Voltage (Voc) 22.5V
Short Circuit Current (Isc) 6.97A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
