Quality Batteries WA

120 Watt, 12V Mono-crystalline Folding Solar Panel Kit KT70710 KT SOLAR

Regular price $355.00 AUD
Regular price Sale price $355.00 AUD
Sale Sold out

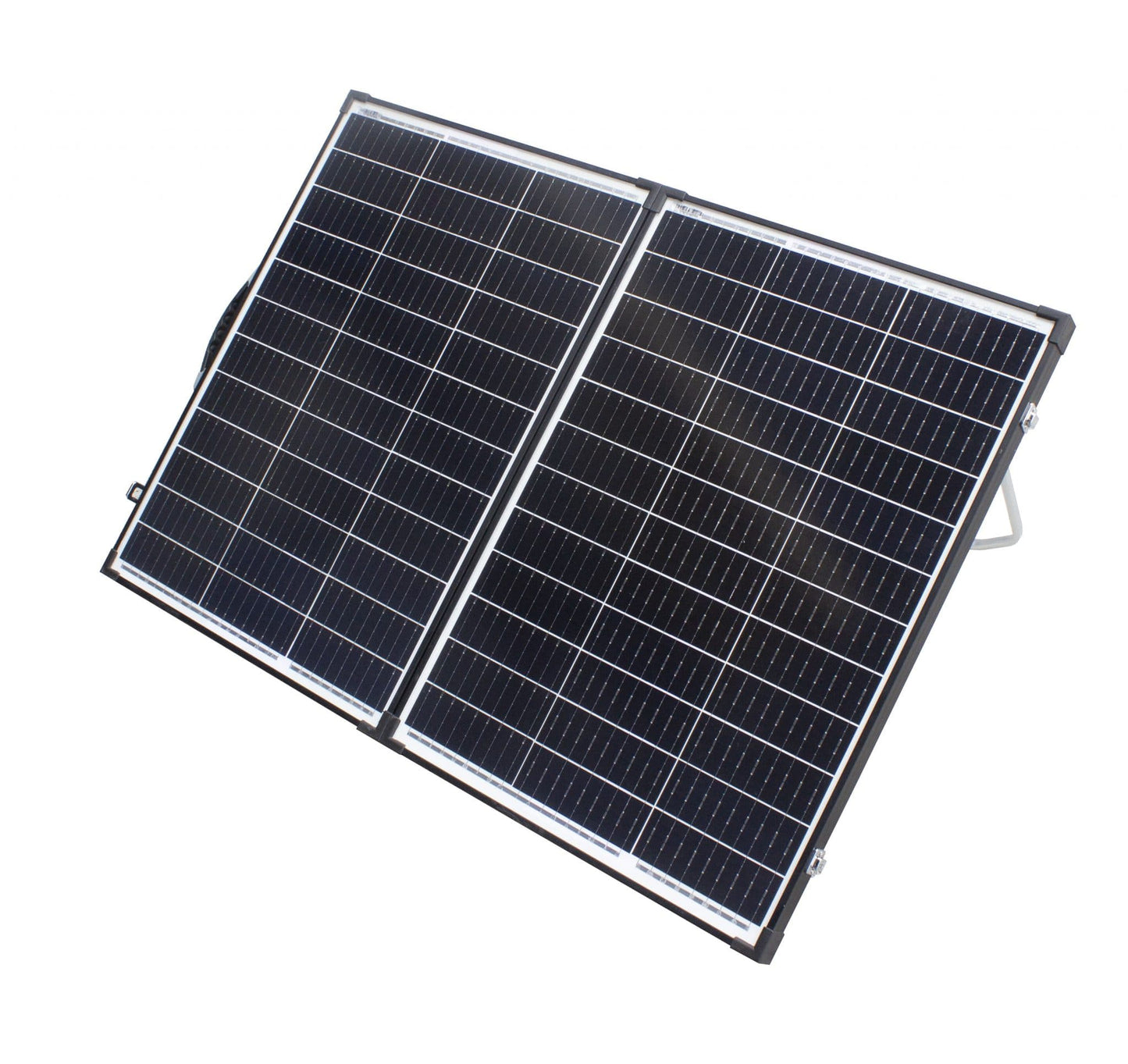

The highly efficient 120W Portable Folding Solar Kit is comprised of 2 x 60W solar cells configured in parallel. The kit includes a 10m extension lead & a 500mm lead terminated to alligator clamps for simple connection to power. The kit includes a 10Amp, 12VPWM solar charge controller.

Dimensions & Weight:

  • Dimensions Unfolded: 710mm (H) x 1020mm (W) x 30mm (D)
  • Dimensions Folded: 710mm (H) x 510mm (W) x 65mm (D)
  • Panel Weight: 9.50Kg


  • Powerful 120W, 12V portable ‘brief case’ style kit

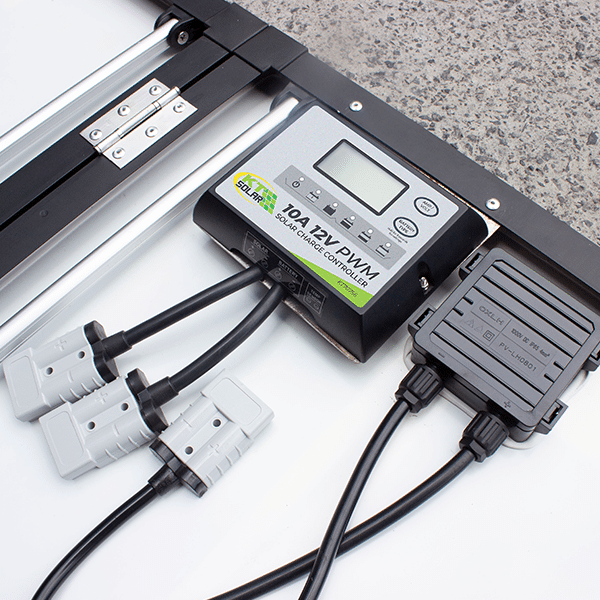

  • 10 Amp. 12V PWM solar charge controller
  • Solar charge controller IP Rating (IP65)
  • Solar controller is compatible with gel, wet, AGM, calcium & lithium batteries
  • Controller features reverse polarity, short circuit and over voltage protection
  • 10m, 50A extension lead
  • Positive & negative alligator clamps, 500mm lead to 50Amp, 12-48V connector
  • Sturdy aluminium leg supports
  • Quality stainless steel latches and hinges
  • Controller securely mounted to the panel supports, reducing de-rating
  • Protective ABS corners
  • Heavy duty swivel carry handle
  • Heavy duty storage bag

Warranty & Guarantees:

  • 12 Month Warranty on complete kit

Kit Includes

  • 1 x Premium quality 2 x 60 watt monocrystalline cells in parallel
  • 1 x Quality pulse width modulation controller
  • 1 x 10 Metre extension lead with 4sq mm cabling (no voltage drop)
  • 1 x Alligator clamps/heavy duty connector accessory leads
  • 1 x 8mm eye terminals for permanent battery pole fixing
  • 1 x Heavy duty connector accessory leads
  • 1 x Sturdy nylon bag with carry straps
  • 1 x Instruction manual included


Power Tolerance +3%
Maximum Power (Pmax) 120Wp
Maximum Power Voltage (Vmp) 17.8V
Maximum Power Current (Imp) 6.74A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.0V
Short Circuit Current (Isc) 7.74A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
