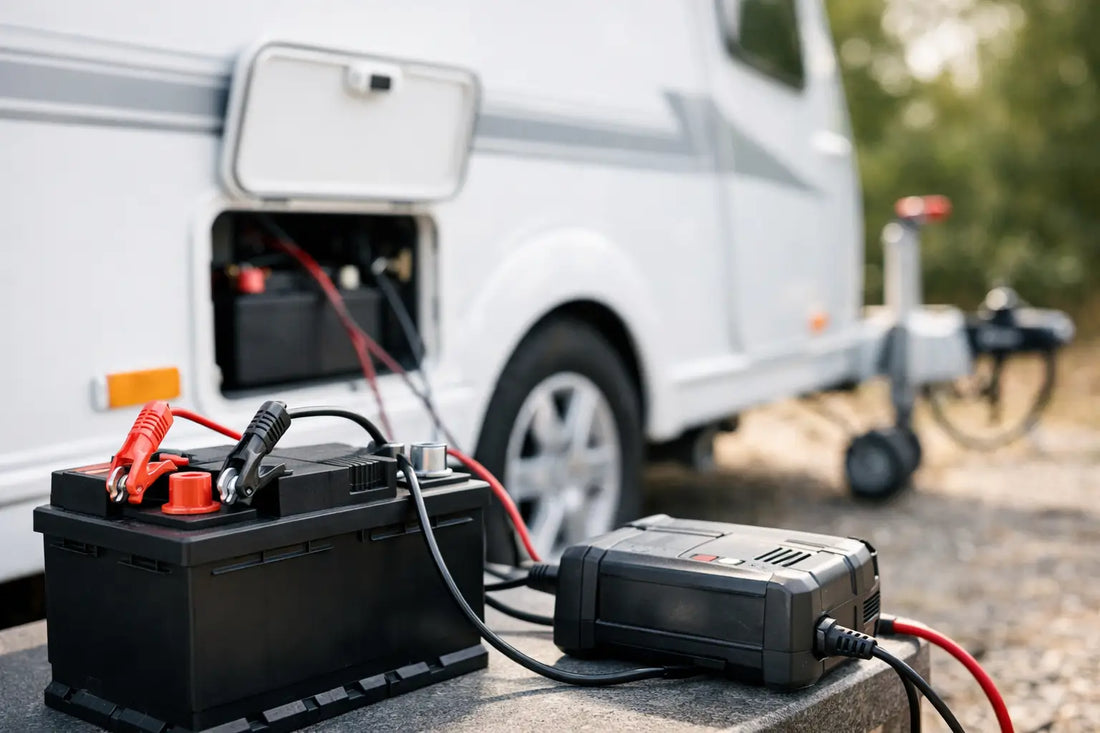

How to Charge a Caravan Battery Properly

A caravan battery that goes flat halfway through a trip is rarely just bad luck. It is usually a charging issue, an undersized battery bank, or a load that has been underestimated. If you are working out how to charge caravan battery systems properly, the first job is matching the charging method and settings to the battery you actually have.

A good caravan setup should recharge safely while protecting battery life. That means using the right charger profile, suitable cable sizing and a charging source that suits how you travel - whether you spend most nights in powered parks, tow long distances, or camp off-grid around WA.

Start by identifying your caravan battery

Most caravan house batteries are 12V deep-cycle batteries, designed to supply power steadily over time. They are different from a vehicle starting battery, which delivers a short burst of high current to start an engine. Using the wrong charger or treating a deep-cycle battery like a starter battery can shorten its service life.

Check the label on the battery before connecting anything. You need to know the battery chemistry, voltage and capacity in amp-hours (Ah). The common caravan battery types are flooded lead-acid, AGM, gel and lithium iron phosphate, often called LiFePO4 or lithium.

AGM batteries are popular because they are sealed, low-maintenance and handle vibration well. Gel batteries need a carefully controlled charging voltage. Lithium batteries charge efficiently and offer more usable capacity for their size, but they need a lithium-compatible charger and should not be charged below the manufacturer’s stated temperature limit. A lithium battery’s built-in battery management system is a useful safeguard, but it does not make an incorrect charger setting safe.

If the battery label is faded or you are unsure what has been fitted, get it checked before charging. Guessing the battery type is an expensive way to find out a charger is unsuitable.

Choose the right way to charge a caravan battery

There are three main ways to recharge a caravan battery: a 240V mains charger, a DC-DC charger from the tow vehicle, and solar charging. Many caravans use all three. The best setup depends on where and how you travel.

Charging from 240V mains power

When your caravan is connected to a powered site or plugged in at home, an onboard battery charger is usually the most dependable way to recharge the battery fully. A modern multi-stage charger starts with bulk charging, then reduces the charge as the battery fills and moves to a maintenance or float stage once it is full.

Select the correct battery profile on the charger. For example, use AGM mode for an AGM battery and lithium mode for a LiFePO4 battery. Do not assume a charger marked as “smart” automatically detects every chemistry correctly. Some need manual selection, and older units may not be suitable for lithium at all.

For lead-acid batteries, a charger rated around 10 to 20 per cent of battery capacity is often a sensible guide. A 100Ah battery generally suits a 10A to 20A charger. A smaller charger will still work, but charging will take longer. A much larger charger is not automatically better, particularly if it exceeds the battery manufacturer’s recommended maximum charge current.

Use a compliant 240V connection and keep chargers dry and well ventilated. If your caravan has an existing hard-wired charging system and you are unsure how it operates, do not alter the 240V side yourself. A licensed electrician should handle fixed 240V work.

Charging while towing with a DC-DC charger

A DC-DC charger takes power from your tow vehicle’s alternator and delivers a controlled charge to the caravan battery. It is the practical option for travellers who move frequently and want to arrive at camp with useful charge in the battery bank.

Modern vehicles commonly use smart alternators that reduce output once the starting battery is full. A basic charge line from the vehicle may not provide enough voltage to recharge a caravan battery properly, especially through a long cable run. A quality DC-DC charger boosts and regulates that supply, giving the deep-cycle battery the charge profile it needs.

The charger must be sized for both the battery bank and the wiring. A higher-amp charger can replenish power faster, but only if the cables, plugs, fuses and connections are rated for it. Undersized wiring creates voltage drop, which means slower charging and unnecessary heat. The charger should also be mounted where it is protected from weather, dust and excessive heat, with enough airflow around it.

Never connect a caravan battery directly to the tow vehicle’s alternator without suitable circuit protection and isolation. A properly installed DC-DC system helps protect both the tow vehicle’s starting battery and the caravan’s auxiliary power system.

Charging with solar panels

Solar is ideal when you are staying put away from mains power. It can keep up with everyday loads such as lights, a water pump, USB charging and a compressor fridge, provided the panel size and weather are on your side.

Solar panels need a solar regulator between the panels and battery. An MPPT regulator is generally the better choice for larger systems or variable light conditions because it can recover more available power than a basic PWM regulator. Like any charger, the regulator must be configured for the correct battery chemistry.

Do not judge solar performance by panel wattage alone. A 200W panel will not produce 200W all day, every day. Shade from a gum tree, dust, overcast weather, panel angle and short winter days all reduce output. If your caravan relies on solar for extended free camping, build in a realistic margin rather than sizing the system only for perfect summer conditions.

Set the charger correctly before switching on

Once you know the battery type, set the charger profile and charge current according to the battery manufacturer’s specifications. This matters most with lithium and gel batteries, but it is good practice for every battery.

Before charging, inspect the battery terminals and cables. They should be clean, tight and free of corrosion or damaged insulation. Check that the battery is secured properly in its compartment. A caravan battery can be damaged by vibration, and a loose battery is a serious hazard on corrugated roads.

For a portable charger, connect the positive lead to the positive battery terminal first, then connect the negative lead to the negative terminal or the recommended earth point. Set the charger to the correct mode before turning on the power supply. When disconnecting, switch off mains power first, then remove the negative connection before the positive connection.

If you have several batteries connected in parallel, they must be the same chemistry, voltage, capacity and preferably the same age. Mixing an old AGM with a new AGM, or mixing lithium and lead-acid batteries in one bank, creates uneven charging and discharge behaviour. It is not a reliable long-term solution.

How long does caravan battery charging take?

Charging time depends on the battery’s remaining capacity, charger output, battery type and losses during charging. As a rough example, a 100Ah AGM battery that is 50 per cent discharged needs about 50Ah replaced. With a 10A charger, allow more than five hours because lead-acid batteries slow down as they approach full charge.

Lithium batteries usually accept a higher charge current for longer, so they often recharge faster with a suitable charger. But the actual time still depends on the charger rating and whether other appliances are drawing power while charging.

A battery monitor is more useful than relying on voltage alone. Voltage can give a rough indication after the battery has rested with no charge or load, but it can be misleading while a charger, solar system or appliance is connected. A monitor that tracks amp-hours in and out gives a clearer picture of what your battery bank is doing.

Avoid the mistakes that flatten batteries early

The most common problem is regularly discharging a lead-acid battery too deeply. For the best service life, avoid taking AGM, gel or flooded deep-cycle batteries below around 50 per cent state of charge where possible. They can be discharged further in an emergency, but doing it repeatedly reduces their usable life.

Lithium batteries can generally be discharged further, but leaving any battery flat for long periods is a bad habit. Recharge it as soon as practical. For stored caravans, check the battery regularly and use the appropriate maintenance arrangement. Lead-acid batteries benefit from a suitable float charge, while lithium storage advice varies by manufacturer and battery management system.

Also account for hidden loads. A stereo memory, TV standby mode, inverter, gas detector or fridge control board can slowly drain a battery while the caravan is parked. Switch off what is not needed, and isolate the battery only if doing so will not disable essential safety equipment.

Get reliable power before the next trip

The right charging setup is not always the biggest or most expensive one. It is the one that suits your battery chemistry, daily power use and travel plans. A powered-site tourer may only need a dependable mains charger, while an off-grid caravan often needs well-matched solar, DC-DC charging and enough battery capacity to cover cloudy days.

For Perth caravan owners, Quality Batteries WA can help match a deep-cycle battery, charger and accessories to the way you travel, so you can leave with the right solution and confidence in your choice. A quick check before departure is far easier than trying to solve a flat battery at camp.
