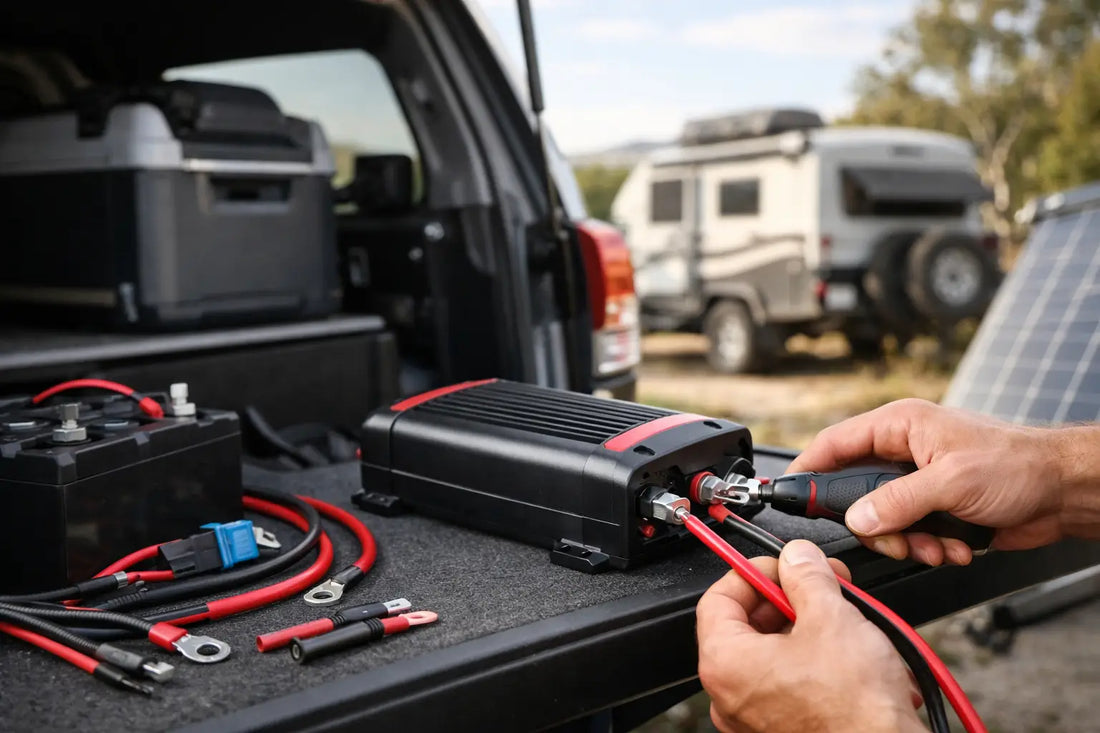

How to Wire a DC Charger in a 4WD or Caravan

A DC-DC charger is what keeps an auxiliary battery properly charged when your 4WD, ute, caravan or camper is on the move. Knowing how to wire a DC charger correctly means your fridge, lights, compressor and other gear have dependable power without flattening the vehicle’s starting battery.

It is not simply a matter of running a cable from one battery to another. Modern vehicles often use smart alternators, lithium batteries need the right charging profile, and an unfused cable can create a serious fire risk. A tidy, correctly protected installation is safer, easier to fault-find and far more likely to perform when you are well away from Perth.

What a DC-DC charger does

A DC-DC charger takes power from the vehicle’s alternator or starting battery and delivers it to the auxiliary battery at the correct voltage and charging stages. Unlike a basic voltage-sensitive relay, it can boost or regulate alternator output where needed.

This matters with smart alternators, which may reduce voltage once the starting battery is charged. It also matters where the auxiliary battery is mounted a long way from the engine bay, such as in a caravan or canopy. Long cable runs lose voltage, and a quality DC-DC charger helps compensate for that loss.

Many units, including Redarc-style chargers, can also accept solar input. That lets the auxiliary battery charge from the vehicle while driving and from a solar panel when camped up. Check the charger manual first, because terminal names, wiring requirements and solar input limits vary by model.

Before you wire a DC charger

Start by confirming the system is matched to the job. Your charger output should suit the battery chemistry and capacity, as well as the available alternator capacity. A 20A charger may be a sensible choice for a modest AGM auxiliary battery and light loads, while a larger lithium setup with a fridge, inverter and regular off-grid use may need a higher-output charger.

Do not choose cable by appearance alone. Cable size depends on the charger’s maximum current, cable length and the manufacturer’s instructions. Undersized cable causes voltage drop and heat, reducing charge performance. As a general rule, longer runs to a rear canopy or caravan require heavier cable than a short run to a second battery under the bonnet.

You will generally need the charger, appropriately rated twin-core cable, correctly sized fuses or circuit breakers, quality crimp lugs, heatshrink, conduit, grommets and secure mounting hardware. If solar is being connected, use cable and plugs rated for the panel and charger input.

Before starting, isolate the starting battery by removing the negative terminal. If you are not confident identifying terminals, calculating cable size or safely routing cable through a vehicle, book an auto electrician. Getting the right fit is much cheaper than repairing damaged wiring or a failed battery system.

How to wire a DC charger safely

The exact terminals differ between brands, so treat the charger’s wiring diagram as the final authority. The following process covers the usual vehicle-to-auxiliary-battery installation.

1. Mount the charger in the right location

Mount the DC-DC charger as close to the auxiliary battery as practical, while allowing ventilation and access for inspection. A canopy, battery box, caravan locker or protected rear compartment can work well. Avoid locations exposed to direct spray, excessive exhaust heat, moving parts or pooled water.

Use a solid mounting surface and protect the charger from vibration. In an engine-bay installation, only use a charger specifically rated and mounted for that environment. Engine bays get hot, dusty and wet, particularly on corrugated tracks and beach launches.

2. Run the input cable from the vehicle battery

Run a positive and negative cable from the starting battery area to the DC charger input. Twin-core cable is usually the better choice because it provides a dedicated negative return rather than relying solely on the vehicle chassis over a long distance.

Route cable away from exhaust components, steering shafts, sharp edges and moving suspension parts. Use conduit where the cable may rub, secure it at regular intervals, and fit rubber grommets wherever it passes through metal. Do not run a bare cable through a drilled hole in a firewall, tray or caravan frame.

Fit a fuse or circuit breaker in the positive cable close to the starting battery. This protects the cable if it is damaged anywhere along its run. The fuse must be sized to protect the cable and suit the charger manufacturer’s recommendation. Bigger is not safer - an oversized fuse may allow the cable to overheat before it blows.

3. Connect the charger input

Connect the vehicle-feed positive cable to the charger’s vehicle or DC input positive terminal. Connect the negative cable to the specified input negative terminal or approved chassis earth point, depending on the charger instructions.

Some chargers need an ignition trigger wire, while others detect alternator voltage automatically. An ignition trigger tells the charger when the vehicle is running and is particularly useful with some smart-alternator vehicles. Use the correct switched source and protect the trigger circuit as specified. Never guess which wire under the dash or bonnet is suitable.

4. Connect the auxiliary battery output

Run the charger’s output positive cable to the auxiliary battery positive terminal. Fit another fuse or circuit breaker as close as possible to the auxiliary battery positive terminal. This protects the output cable from a short between the charger and battery.

Connect the charger output negative to the auxiliary battery negative terminal. Keep terminals clean, tight and protected from accidental contact. If your battery system uses a shunt for a battery monitor, follow the monitor’s diagram carefully so all loads and charging sources are measured correctly.

A common mistake is fitting the charger but connecting accessories directly to the battery without suitable fusing. Every circuit leaving the battery should have protection appropriate to its cable and load. Your fridge, lighting, inverter and USB outlets need their own protected circuits, not one oversized fuse doing all the work.

5. Add solar input if your charger supports it

If the charger has a dedicated solar input, connect the solar panel through the recommended plugs, cable and protection. Observe polarity carefully. Solar panels can produce power whenever they are in sunlight, so cover the panel or disconnect it before working on terminals.

Do not feed an unregulated panel into a charger input that is not designed for solar. Likewise, do not assume a separate solar regulator is needed if your DC-DC charger already includes an MPPT solar regulator. Two regulators in the wrong configuration can cause charging problems.

6. Set the battery charging profile

Before reconnecting power, set the charger to the correct battery type: AGM, flooded lead-acid, calcium, gel or lithium, where supported. Selecting the wrong profile can lead to poor charging, shortened battery life or battery-management-system shutdowns.

Lithium batteries deserve extra attention. Confirm that the battery has an appropriate BMS, the charger has a lithium profile, and the battery manufacturer permits charging in the expected temperature range. Some lithium batteries should not be charged below freezing, which can matter for travellers heading into colder regions.

7. Test the installation properly

Reconnect the starting battery negative terminal, then check every connection before starting the vehicle. Confirm fuses are fitted, cable is secured and no positive terminal can contact metalwork.

Start the vehicle and confirm the charger indicates it is receiving vehicle input and charging the auxiliary battery. If solar is connected, test it separately in sunlight. A multimeter can verify voltage at the charger input and battery terminals, but charger status lights or an app should still be checked against the manufacturer’s guide.

After the first drive, feel the cable and terminals carefully for excessive heat, then recheck mounting bolts and connections. Warmth can indicate undersized cable, a poor crimp or a loose terminal. Address it straight away rather than hoping it settles down.

Common DC charger wiring mistakes

Most charging issues come back to a few avoidable problems: cable that is too small for the run, fuses placed too far from the batteries, poor earth connections, incorrect battery profile settings or charger mounting in a hot and wet location. Another frequent issue is expecting a DC-DC charger to fix a tired auxiliary battery. A charger can charge a healthy battery correctly, but it cannot restore a battery that has lost capacity or has an internal fault.

For caravan setups, also consider the Anderson plug and tow-vehicle wiring as part of the complete system. A charger in the caravan still needs a properly fused, adequately sized supply from the tow vehicle. Light trailer wiring is not suitable for high-current charging.

A well-wired DC-DC charger should disappear into the background: start the vehicle, drive, camp and trust that the auxiliary battery is receiving the right charge. If you are building a new 4WD, canopy or caravan power system, Quality Batteries WA can help match the charger, auxiliary battery and accessories to the way you actually use your vehicle, so you leave with reliable power and confidence in the setup.
