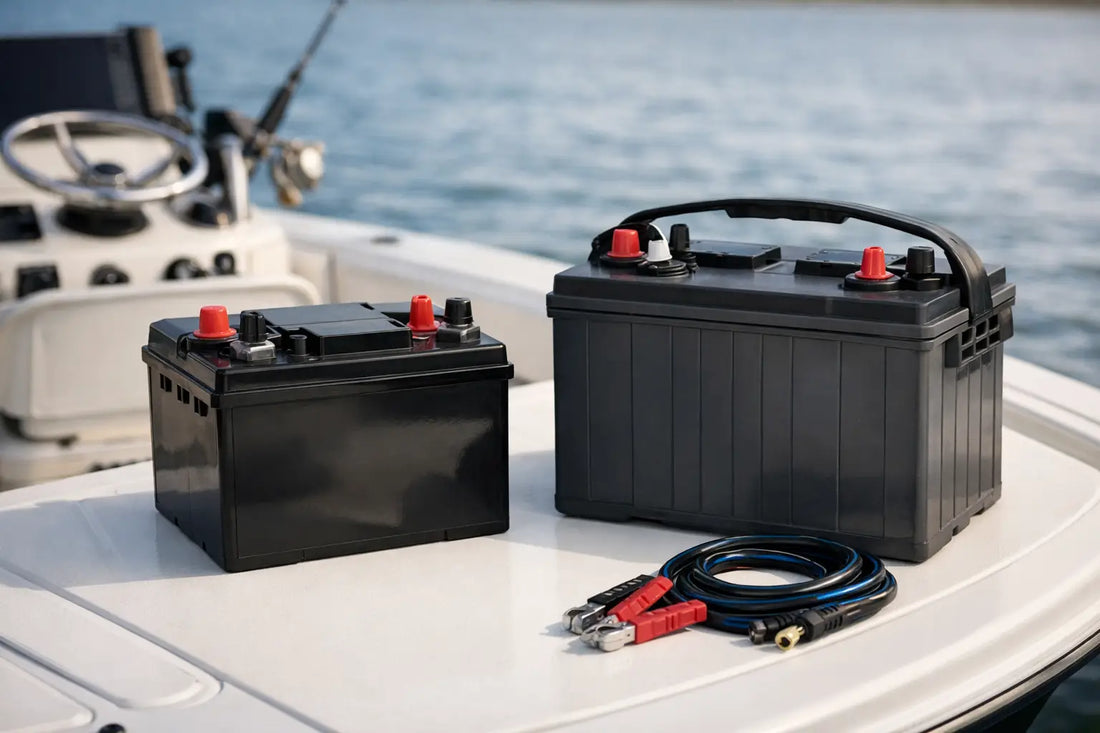

Boat Starting Battery vs Deep Cycle Explained

A boat that will not crank at the ramp can ruin a planned day on the Swan, Cockburn Sound or Rottnest before it begins. The choice between a boat starting battery vs deep cycle battery is usually the reason: they may look similar, but they are built for very different jobs. Fit the right battery for the way you use your boat and you will have dependable starts, usable accessory power and less chance of being caught out offshore.

Boat starting battery vs deep cycle: the key difference

A starting battery is designed to deliver a large burst of power over a short period. Its main task is cranking the engine, then being quickly recharged by the outboard or inboard alternator once the motor is running. This is why starting batteries are rated by Cold Cranking Amps, or CCA. Higher CCA generally means more starting power, provided the battery is the correct physical fit and voltage for your engine.

A deep cycle battery is designed to supply a steadier amount of power over a longer time, then be discharged and recharged repeatedly. It suits loads such as electric trolling motors, fish finders, GPS units, radios, lighting, live wells, fridges and anchor winches. Rather than focusing on a short burst of current, deep cycle batteries are commonly assessed by amp-hour capacity, reserve capacity and usable run time.

Put simply, a starting battery gets the engine going. A deep cycle battery keeps your equipment running when the engine is off.

The internal construction explains the difference. Starting batteries use many thin plates to create maximum surface area and high cranking output. They do not like being deeply discharged. Deep cycle batteries use thicker, more durable plates that can better tolerate repeated discharge cycles, but their instant cranking output is usually lower for their size.

When a starting battery is the right fit

For a straightforward runabout used mainly for travelling between the ramp, fishing spots and home, a dedicated marine starting battery is often the right answer. If the engine is your primary load and you only run a modest sounder, navigation unit and radio, the alternator will typically replace the energy used to start the boat during normal operation.

Check the engine manufacturer’s recommended minimum CCA before choosing. A battery with too little cranking power may struggle after a few months of use, particularly if terminals are corroded, cables are undersized or the engine has not been serviced. Bigger is not automatically better either. The battery still needs to fit the tray, allow the hold-down to secure it properly and have terminals in the correct position for your cables.

A marine starting battery is preferable to using a standard car battery where possible. Boats deal with vibration, humidity, salt spray and periods of sitting unused. Marine batteries are built with those conditions in mind, although no battery will last well if it is left flat or its terminals are exposed to corrosion.

When you need a deep cycle battery

A deep cycle battery makes sense when accessories are expected to work for hours without the engine running. A tinny with a bow-mount electric motor is a clear example. So is a cabin boat that runs a fridge, lights, pumps, stereo and electronics while at anchor.

Work out the likely load before selecting capacity. A 100Ah battery does not necessarily provide 100 hours of use. Run time depends on the actual current draw, how deeply you discharge the battery, battery chemistry, temperature and the condition of cables and connections. A fridge cycling overnight uses power differently from a trolling motor pushing against wind and tide.

As a practical approach, list each accessory, its amp draw and the number of hours it will operate. Add the expected consumption, then allow a sensible margin rather than planning to flatten the battery every trip. Deeply discharging any lead-acid battery shortens its service life, even one designed for cycling.

Battery chemistry also changes the decision. AGM deep cycle batteries are sealed, low-maintenance and well suited to many marine auxiliary applications. Lithium batteries offer lower weight, fast charging and strong usable capacity, but they cost more upfront and must be paired with suitable charging equipment. Conventional flooded batteries can provide good value, but require correct mounting, ventilation where required and routine checks.

Can one battery do both jobs?

A dual-purpose marine battery is a compromise designed to offer useful cranking power and reasonable cycling capability from one battery. It can be a practical choice for smaller boats with limited space, modest accessory demand and a healthy charging system.

The trade-off is that it will rarely crank as strongly as a dedicated starting battery of the same case size or cycle as deeply as a dedicated deep cycle battery. It is a sensible middle ground, not a cure for an overloaded electrical system.

If you regularly spend long periods at anchor, run a trolling motor or rely on electronics for navigation, a two-battery setup is usually the more reliable option. Use one starting battery reserved for the engine and one deep cycle battery for house loads. A battery isolator, voltage-sensitive relay or DC-DC charger can then manage charging while protecting the starting battery from accessory drain.

This arrangement means you can use the sounder and fridge without wondering whether there will be enough power left to crank the motor. It also makes fault-finding easier because engine starting and accessory power are separated.

Do not choose by amp-hours alone

One of the most common mistakes is buying the highest Ah battery that fits and assuming it will suit every boat. Capacity matters for deep cycle use, but it is not a substitute for CCA when starting an engine. Likewise, a high-CCA starting battery may look impressive but provide poor service if it is repeatedly used to run accessories overnight.

Start with the label on your existing battery. Note the battery model, voltage, CCA, case dimensions, terminal layout and mounting arrangement. Then consider how the boat is actually used. A boat that makes short runs and sits with electronics on can need more auxiliary capacity than its owner expects, while a ski boat that starts reliably but has few accessories may only need a quality starting battery.

Also inspect the charging system. A new battery cannot compensate for an outboard alternator that is not charging, a loose earth, damaged cable, corroded terminal or parasitic draw. If a battery repeatedly goes flat, test the system before replacing batteries again.

Marine battery care that pays off

Reliable power starts with correct installation and basic maintenance. Secure the battery in a proper tray with an appropriate tie-down so vibration and rough water cannot move it around. Keep terminals clean and protected, check cables for green corrosion or damaged insulation, and make sure connections are tight.

After a trip, recharge a deep cycle battery promptly with a charger suited to its chemistry. This matters particularly for boats stored for weeks between outings. Leaving a battery partially discharged promotes sulphation in lead-acid types and reduces available capacity over time. A quality multi-stage charger or appropriately configured DC-DC charger is a worthwhile part of a marine setup, especially where solar charging is involved.

Avoid assuming the engine will always recharge everything. Small outboard charging systems may replace the energy used for starting but can be slow to recover a deeply discharged house battery, particularly when electronics are running at the same time. If your boating involves overnight stays or frequent trolling, plan charging capacity as carefully as battery capacity.

Choose for the boat you have, not the one you hope to use

The best battery setup follows the load. Choose a dedicated starting battery when dependable engine cranking is the priority. Choose a dedicated deep cycle battery for sustained accessory use. Choose a dual-purpose battery only when your power demands are genuinely modest and space limits a two-battery system.

For Perth boat owners, the right fit also means a battery that suits the tray, engine requirements and the conditions it will face on the water. If the label details are unclear or you are building a dual-battery setup, Quality Batteries WA can help match the battery, charger and accessories to your boat. A few minutes spent choosing the right solution before launch is far better than spending the afternoon waiting at the ramp.
